Style, Comfort & Performance

Our all-new 23 OSX is our latest outboard-powered sport boat, featuring a beam of 100" and an overall length of 23' 5". With dual bucket seats, oversized cupholders, a removable 25 qt Igloo cooler, and so much more, this model is perfect for a day on the water with you and your crew. Step aboard to experience the style, performance, and comfort Stingray is known for.

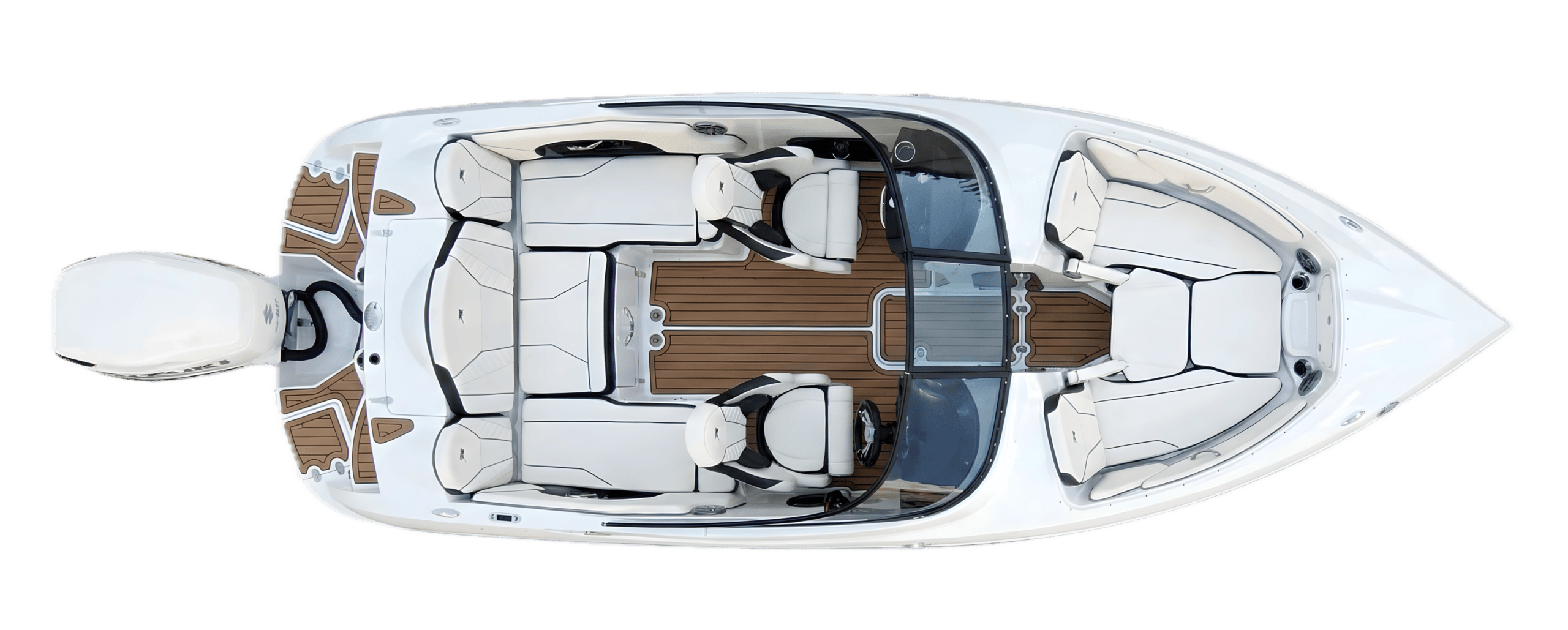

stingray-boats-23-OSX-overhead

Specifications

Engine Type

O/B

Length Overall

23’ 5” / 7.1 m

Beam

100” / 254.0 cm

Bridge Clearance (With Standard Windshield)

55” / 139.7 cm

AVG Dry Weight*

3,364 lbs w/ 250 HP Engine

Usable Fuel Capacity

56 gal / 212 L

Water Capacity

6 gal / 23 L

Max Capacity

10 people / 2,080 lbs / 943 kg

Molded Depth (Windshield Base to Keel)

54” / 137 cm

Max Depth (With Standard Windshield)

43.8” / 111.2 cm

Max Draft (Drive Up)

13” / 33 cm

Bow Depth (Bow to Cushion Top)

15” / 38.1 cm

Max Bow Depth

34” / 86.4 cm

Max Bow Length

46.4” / 117.8 cm

Cockpit Depth (At Helm)

33” / 83.8 cm

Cockpit Width (Max Molded)

81” / 205.7 cm

Cockpit Length (Max Molded)

118” / 299.6 cm

Deadrise

20 degrees

Transom Angle

15 degrees

* Weights vary depending on installed options. Refer to Performance Options for additional information.

Standard Features

  • Certifications: NMMA, USCG
  • 3-Year Hull Blister Protection Plan
  • Exclusive Z-Plane Hull
  • Limited Lifetime Hull Protection Plan
  • Stain Resistant Vinyl
  • Bilge Pump 1100 GPH Auto/Man
  • Bow Anchor Locker
  • Bow Storage
  • Cooler/Storage Box w/ Overboard Drain
  • Dash Accessory Plug 12V w/ Dual USB Ports
  • Floor Storage w/ Oversize Door
  • Integrated Electric Horn
  • Oversized Cup Holders
  • Safety Glass Windshield
  • Factory Installed Windshield
  • RA670 Stereo Upgrade – w/ Remote
  • Fuel System EPA Compliant
  • Dual Bucket Seats w/ Bolster
  • Cooler 25 Qt Igloo (removeable)
  • Italian Steering Wheel
  • Stainless Steel Pop-Up Cleats
  • Black Gunnel Molding w/ Stainless Steel Insert
  • Stainless Steel Multi-Step Aft Ladder
  • Pressurized Water / Transom Shower
  • Lumitec Underwater Lights
  • Filler Cushion – Bow
  • Dual Battery System w/ VSR & Switch
  • Trim Tabs w/ LED Indicator – Electric
  • Cockpit and Bow Cover Sunbrella

Optional Features

ENGINES

  • Suzuki DF250APX DIG
  • Suzuki DF300APX DIG
  • Suzuki DF350 Black
  • Yamaha F250XCB DIG
  • Yamaha F300XCB DIG
  • Yamaha F300XSB2 White DIG

STEERING

  • Hydraulic Tilt Steering Suz
  • Hydraulic Tilt Steering Yam
  • Yamaha EX Steering Helm

STEERING POWER ASSIST

  • Sea Star Power Assist Steering

EXTERIOR COLORS

  • Abaco Green
  • Black
  • Oyster
  • Seaside Blue
  • Sky Blue
  • Black Cherry
  • Standard White

BOTTOM COLORS

  • Abaco Green
  • Black
  • Oyster
  • Seaside Blue
  • Sky Blue
  • Black Cherry
  • Standard White

HULL STYLE

  • Full Color Band
  • Solid Hull
  • Solid Hull and Deck
  • No Color Band

UPHOLSTERY COLORS

  • White/Brown
  • White/Gray
  • White/Coal

COCKPIT ACCESSORIES

  • Bimini Top
  • Stainless Steel Ski Pole (Pop Up)

ELECTRICAL - GPS

  • Garmin 743 & Transducer

ELECTRICAL - STEREO

  • Fusion 1400W 4 Channel Digital Amplifier

HULL OPTIONS

  • Battery Charger
  • LED Docking Lights – Stainless Steel
