Dual Console

269DC

Dual Console

269DC

RAISING THE BAR

The new 269DC is the perfect combination of engineering form, function and performance. It has all the style and comfort of a dual console, plus it can be equipped for any activity you enjoy on the water. The 269DC delivers a smooth and dry ride attributed to the Z-Plane Deep V Hull and ample deck space suited for family comfort and convenience. Stingray has raised the bar in the crossover market with the 269DC by delivering exceptional value and quality. Comfortable seating throughout the boat, a well-equipped optional cockpit galley, plenty of storage space, a large step-down head compartment and the deep cockpit will make your trips to your favorite destination effortless.

269DC overhead

Specifications

Length Overall

27'11" / 8.5 m

Beam

102" / 259.0 cm

Bridge Clearance (T-Top/Hardtop w/o External Options)

105.0" / 266.7 cm

AVG Dry Weight*

6,400 lb / Twin 200 HP Engines

Usable Fuel Capacity

130 gal / 492 liter

Water Capacity

19 gal / 72 liter

Ice Box / Cooler Capacity

60+16+185 qt / 57+15+80 liter

Livewell Capacity

15 gal / 57 liter

Max Capacity

Yacht Certified

Max Engine Power

450 HP

Molded Depth (windshield base to keel)

72.5" / 184.2 cm

Max Depth (with standard windshield)

91.7" / 232.9 cm

Max Draft (Drive Up)

18.0" / 45.7 cm

Bow Depth (bow to cushion top)

18.0" / 45.7 cm

Max Bow Depth

38.8" / 98.6 cm

Max Bow Length

67.0" / 170.2 cm

Cockpit Depth (At Helm)

39.0" / 99.1 cm

Cockpit Width (max molded)

82.8" / 210.2 cm

Cockpit Length (max molded)

241.0" / 612.1 cm

Deadrise

21 degrees

Transom Angle

15 degrees

* Weights vary depending on installed options. Refer to Performance Options for additional information.

VIDEO GALLERY

youtube-video-thumbnail

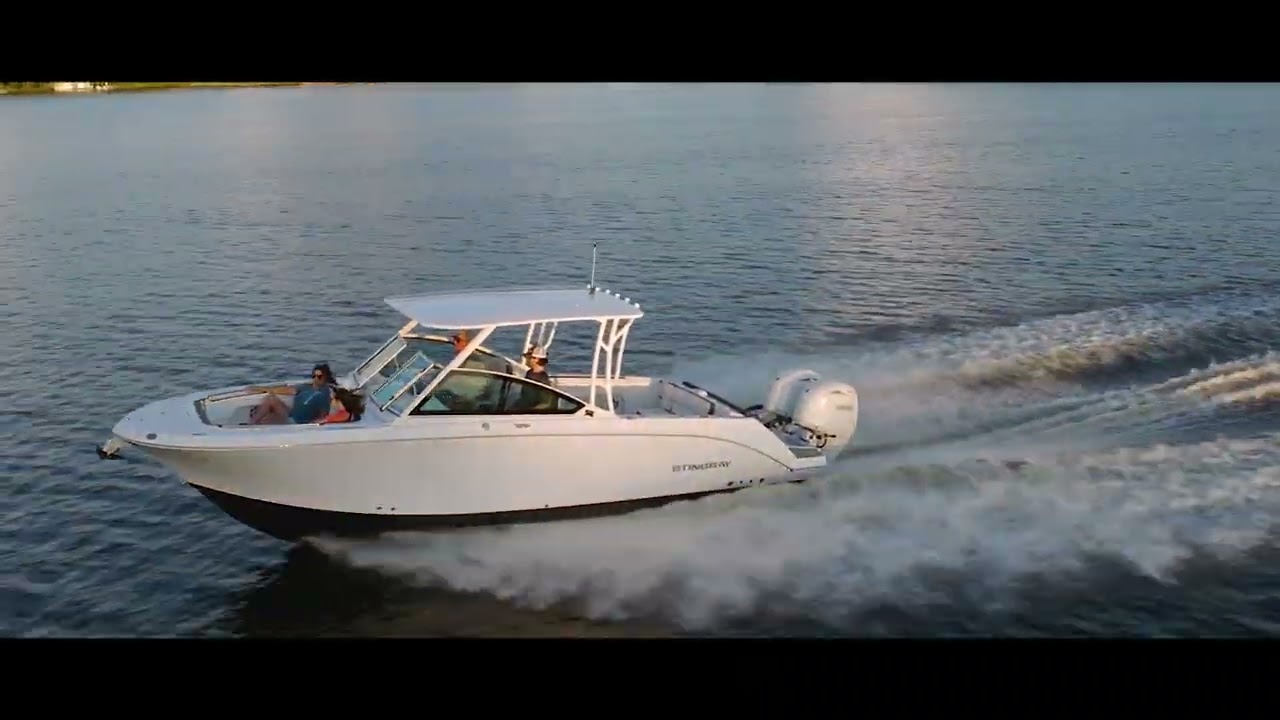

Stingray Boats 269DC - Running

Stingray Boats 269DC Video

Stingray Boats - 269DC

youtube-video-thumbnail

269DC - Boating Magazine 2021

Standard Features

  • Exclusive Z-Plane Hull
  • 3-Year Hull Blister Protection Plan
  • Certifications: NMMA, USCG
  • Limited Lifetime Hull Protection Plan
  • Nano-Block Stain Resistant Vinyl
  • Aerated Livewell 800gph (auto)
  • Backlit Instruments & Circuit Breakers
  • Bilge Pump 2000 GPH Auto/Man
  • Bow Anchor Locker
  • Bow Storage
  • Walk-thru Door
  • Cooler/Storage Box with Overboard Drain
  • Dash Accessory Plug 12V w/ Dual USB Ports
  • Enclosed Head & Lighting
  • Insulated Fish/Storage Box (aft)
  • Floor Storage w/ Oversize Door
  • Freshwater Sink (Head)
  • Freshwater Sink (Cockpit)
  • Integrated Electric Horn
  • Oversized Cup Holders
  • Safety Glass Windshield
  • Self Bailing Cockpit
  • Dual Battery System w/ VSR & Switch
  • Porta-Potti w/ Level Indicator
  • Signature Speaker Upgrade White
  • Dual Console Hard Top
  • ZipWake Interceptors Auto Ride Leveling
  • Pressurized Water w/ Bow & Transom Shower
  • Freshwater System
  • Teak Cockpit Table
  • Cockpit Table w/ Side Mount(s)
  • Stainless Steel Hardware Package
  • Fusion 500W 4 Channel Amplifier
  • Fuel System EPA Compliant
  • Deluxe Stainless Steering Wheel
  • Fusion RA770 BT-APP-WIFI
  • SeaStar Power Assist Steering
  • Stainless Steel Hardware Package
  • Stainless Steel Spring Line Cleats
  • Stainless Steel Bow Rails
  • Stainless Steel Multi-Step Aft Ladder
  • Stainless Steel Pull-Up Cleats
  • Stainless Steel Rod Holders w/ Drain
  • Thru Hull Windlass System
  • White Gunnel Molding w/ Stainless Steel Insert
  • Lockable Head Door

Optional Features

ENGINES

  • Mercury 225 White Twin DIG
  • Suzuki DF200APX Twin DIG
  • Yamaha F200XCA Twin DIG

STEERING

  • Optimus Electric Joystick w/ Autopilot
  • Optimus Electric Tilt Steering Suzuki
  • Optimus Electric Tilt Steering Yam/Merc

EXTERIOR COLORS

  • Abaco Green
  • Black
  • Dove
  • Oyster
  • Red
  • Seaside Blue
  • Sky Blue
  • Standard White

HULL STYLE

  • Full Color Band
  • Solid Hull
  • No Color Band

BOTTOM COLORS

  • Abaco Green
  • Black
  • Dove
  • Oyster
  • Red
  • Seaside Blue
  • Sky Blue
  • Standard White

UPHOLSTERY COLORS

  • Brown
  • Gray
  • White/Coal

CANVAS COLOR

  • Black

CANVAS OPTIONS

  • Aft Bimini Extension Shade Top
  • Cockpit Cover and Bow Cover (Black ONLY)
  • Rear Drop Curtain (Black ONLY)
  • Spray Curtains Front/Sides (Black ONLY)

PACKAGES

Galley Entertainment Package

  • SS Fridge
  • Kenyon Grill
  • Inverter
  • Shore Power Hook Up

COCKPIT ACCESSORIES

  • Engel Cooler Seat Extension
  • Gemlux Deluxe Outrigger Package w/ Shade
  • Head Floor Reflex
  • Raw Water Washdown
  • Stainless Steel Ski Pole (Pop Up)

FIBERGLASS HARDTOP BOTTOM

  • Abaco Green
  • Black
  • Dove
  • Oyster
  • Seaside Blue
  • Sky Blue

ELECTRICAL

  • Garmin Fantom 18 Radar

ELECTRICAL DISPLAY

  • Mercury Digital Display
  • Suzuki Digital Display
  • Yamaha CL5 Display

ELECTRICAL - GPS

  • Garmin 943 & Airmar B150M Chirp
  • Garmin 1243 & Airmar B150M Chirp

ELECTRICAL - STEREO

  • Fusion 1400W 4 Channel Digital Amplifier
  • Fusion 2000W Premium Upgrade
  • Garmin VHF w/ Antenna and Mount

HULL OPTIONS - PORTA-POTTI

  • Porcelain Head w/ Holding Tank w/ Pump Out
  • Porta-Potti w/ Dockside Pump Out

HULL OPTIONS

  • Battery Charger 4 Bank
  • LED Docking Lights - Stainless Steel

Downloads

2023 Stingray
269DC Model Flyer

2023 Stingray
Warranty
